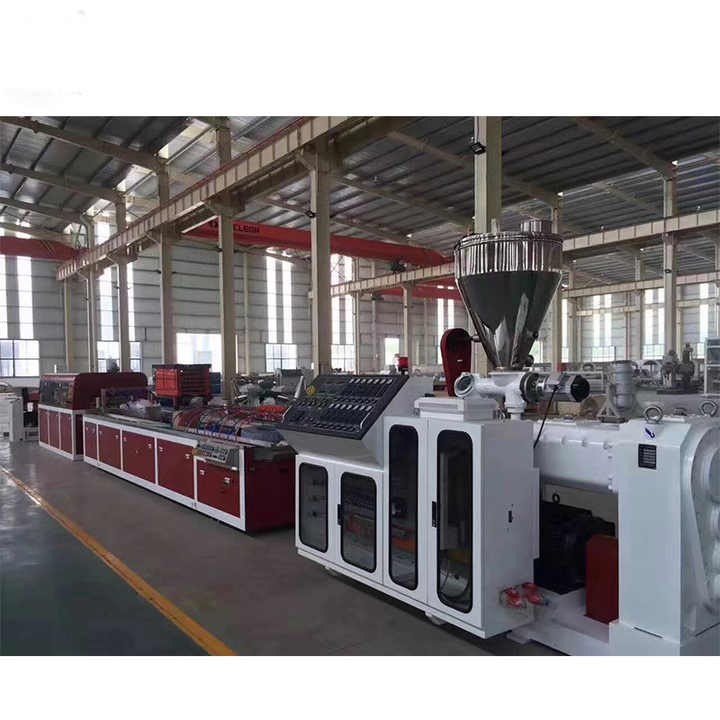

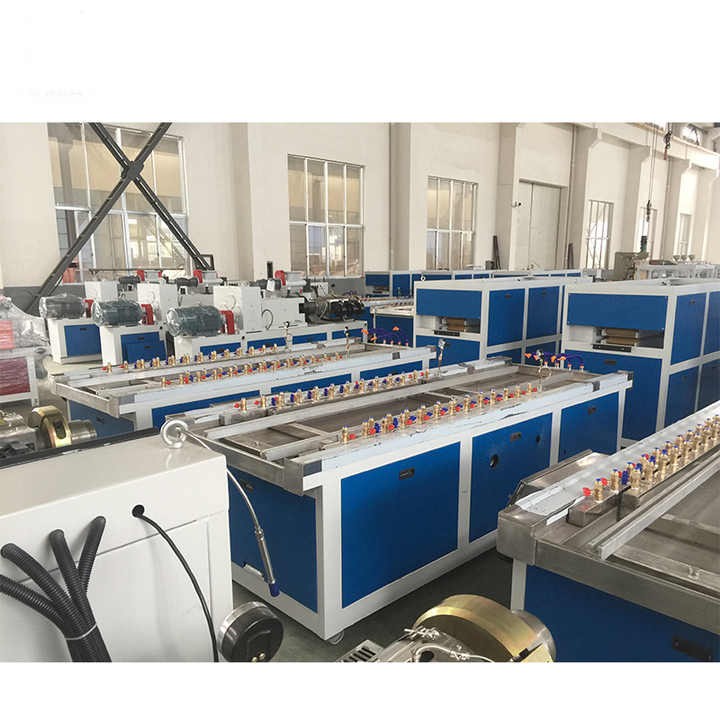

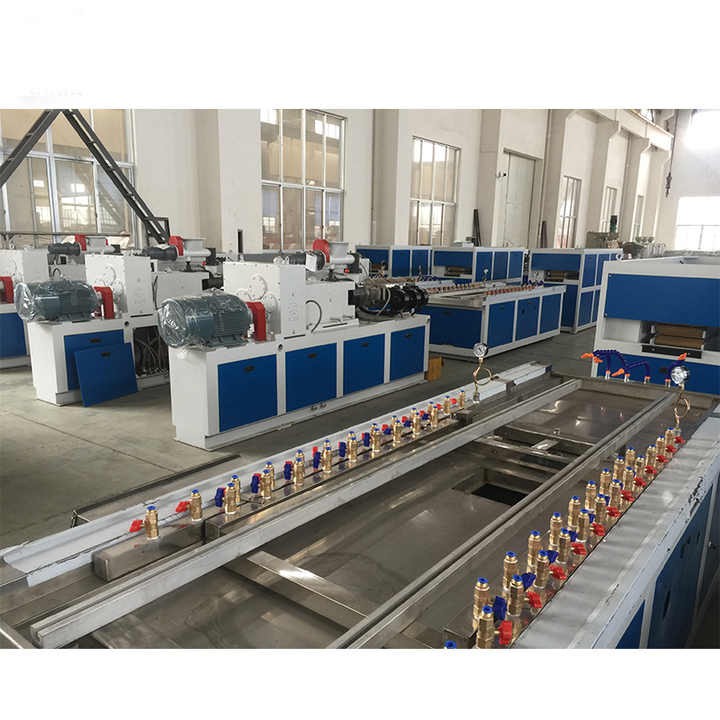

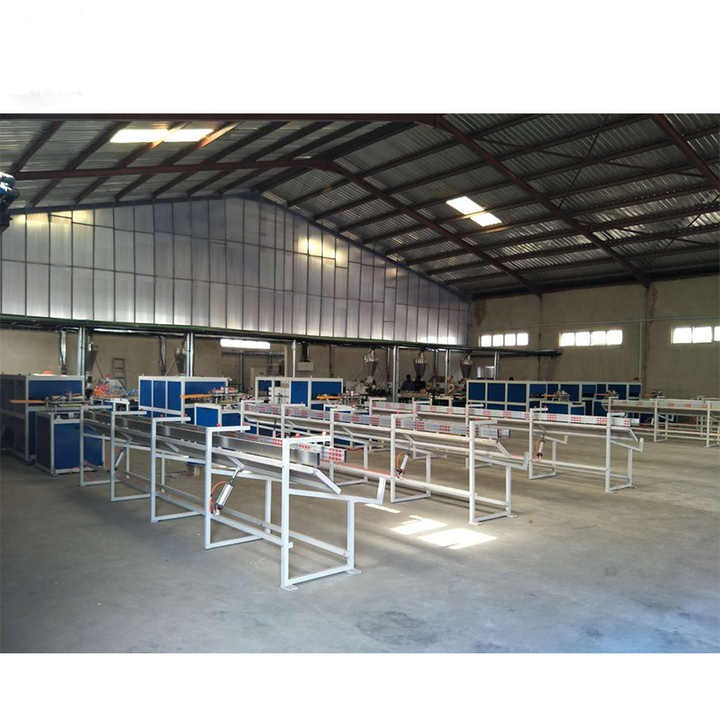

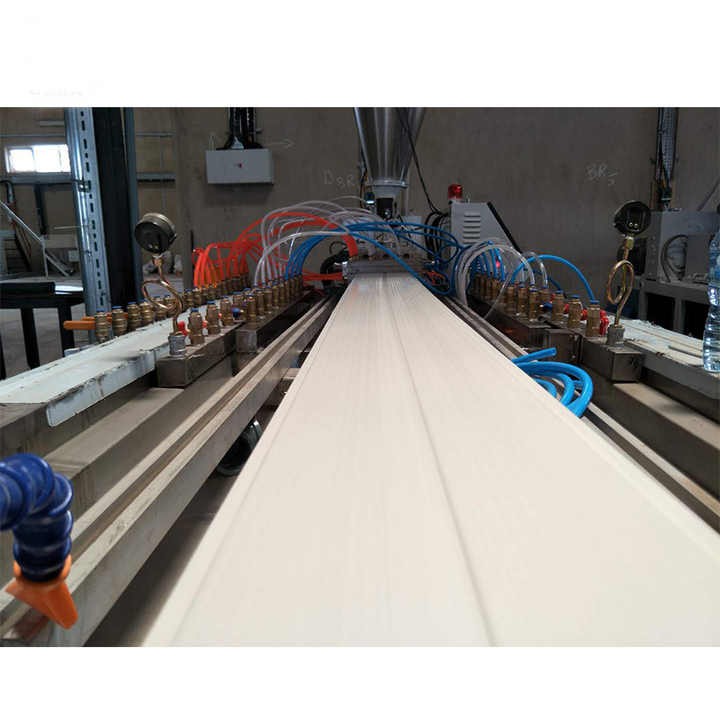

PVC WPC Plastic Wall Panel Making Production Line

Specification:

Condition:

New

Plastic Processed:

PVC

Application:

Sheet, Profile

Screw Design:

Double-screw

Twin Screw Type:

Counter-rotating conical Twin-screw

Screw diameter (mm):

65mm

Screw L/D Ratio:

132:1

Screw Speed (rpm):

80 rpm

Voltage:

380V 50HZ 3P

Dimension(L*W*H):

4235*1520*2450MM

Power (kW):

37

Weight:

1800 KG

Warranty:

1 Year

Key Selling Points:

Competitive Price

Warranty of core components:

1 Year

Core Components:

Other

Machinery Test Report:

Provided

Name:

PVC profile production line

key:

ceiling board ,sheet

capacity:

150-350kg/h

profile size:

general window profile

motor power:

37KW

extruder:

SJSZ double screw extruder

screw type:

conical twin screw

surface treatment:

laminating

Raw material:

PVC Powder

Output (kg/h):

150 - 350
